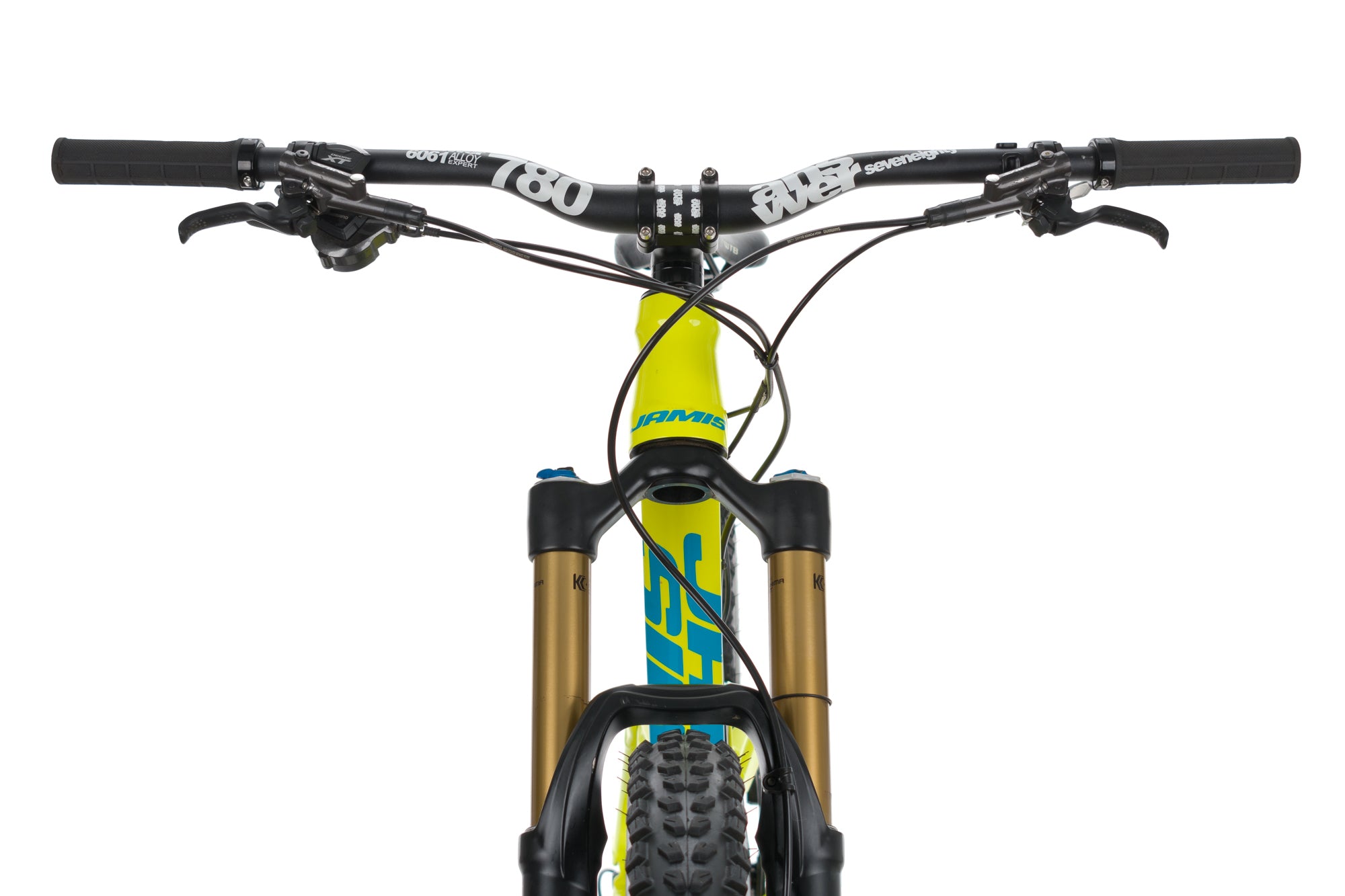

The photos pictured in this auction are of the actual item for sale
Notes
For shipping to Alaska, Hawaii, Puerto Rico, or APO/FPO please email us for a shipping quote
Air has been removed from all shocks for shipping purposes (front, rear, and dropper post)
***All Local Pickup bikes come boxed up***
Condition
PRE-OWNED
**This bicycle is backed by the
**This bicycle has been professionally serviced by our mechanics
**Light wear and tear from cable rub, heel rub, chain, etc.

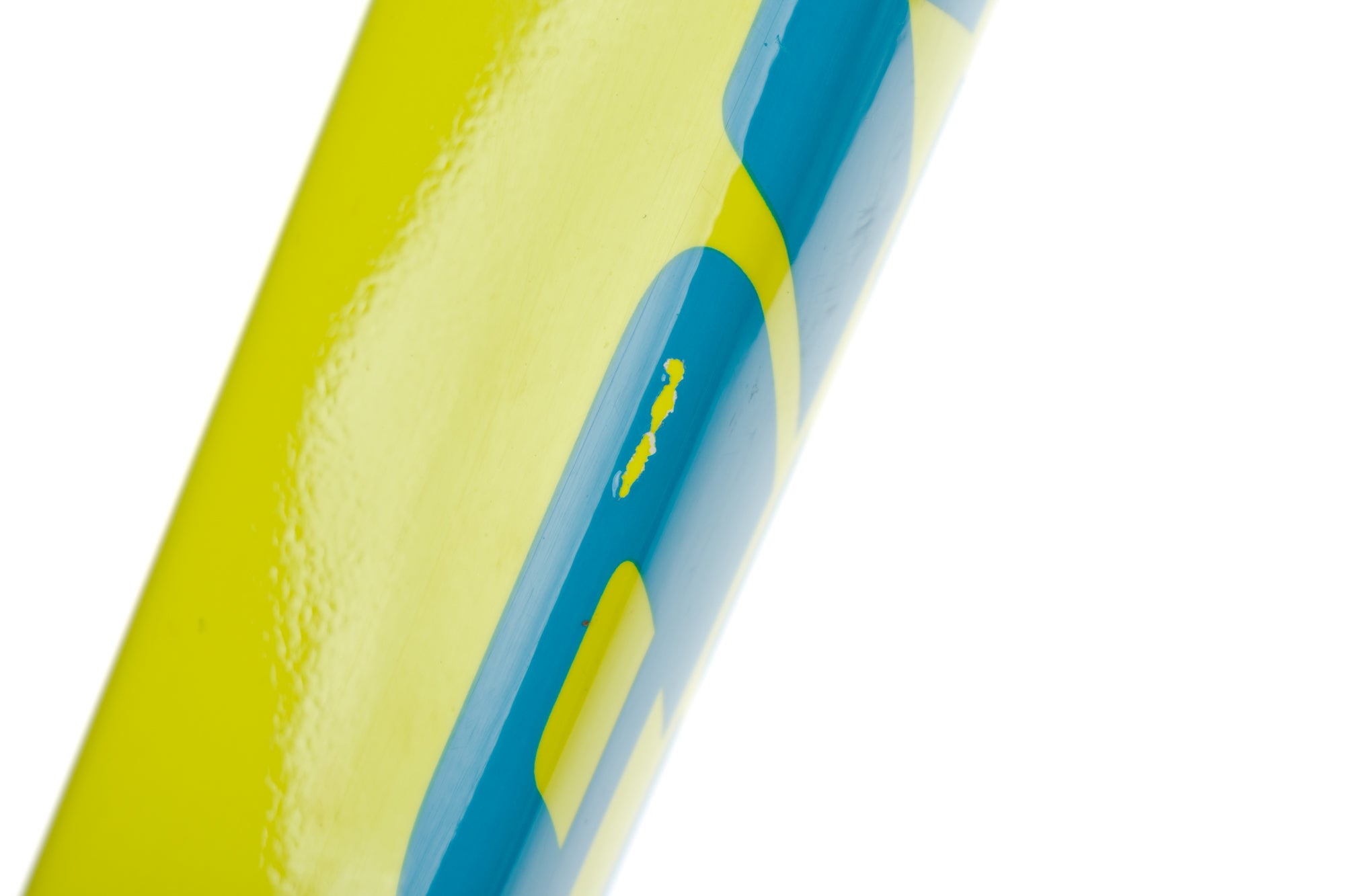

**General nicks, chips, and marks to to paint. Chipping and scratches to fork lowers. Scratching on crank arms and rear derailleur. Some cosmetic surface oxidation or dirt in rear triangle hardware (can be cleaned). KS dropper external actuation box is missing plastic cover.
**PEDALS NOT INCLUDED**
Specifications
Brand: Jamis
Model: Defcon 1
Size: 15"" / Small
Year: 2017
Frame Material: Aluminum
Fork: Fox 36 Float Factory Series - 160 mm Travel
Rear Shock: Fox Float X Factory Series - 160 mm Travel
Weight: 32 lbs 14 oz
Geometry
Effective Top Tube: 570 mm
Seat Tube: 100 mm (C-T)
Seat Tube Angle: 73.5 º
Head Tube Angle: 66.5 º
Head Tube: 100 mm
Stack: 584 mm
Reach: 394 mm
Rear Spacing: 12x142 mm
Standover Height: 719 mm
Components
Headset: FSA
Brakes: Shimano Saint
Brake pads wear: Front - 90 % remaining / Rear - 90 % remaining
Handlebar: Answer Protaper 780 - 780 mm wide
Stem: AME Alloy - 31.8 x 50 mm - 0 º
Seatpost: KS Lev DX - 31.6 mm - 125 mm Travel
Saddle: WTB Volt
Wheelset: Stan's NoTubes Flow MK3 - 27.5""
Front Tire: Vittoria Goma - 27.5"" x 2.40""
Rear Tire: Vittoria Goma - 27.5"" x 2.40""
Drivetrain
Rear Derailleur: Shimano Deore XT
Shifters: Shimano Deore XT
Crankset: Shimano Deore XT, 32t, 170 mm
Cassette: Shimano Deore XT, 11sp, 11-46t
Chain: KMC
Chain wear: 0.25 (For reference: new chains = 0.25, worn chains = > 0.75)
